Introduction
- For use with Standard Hockey Puck Style 1-phase SSRs

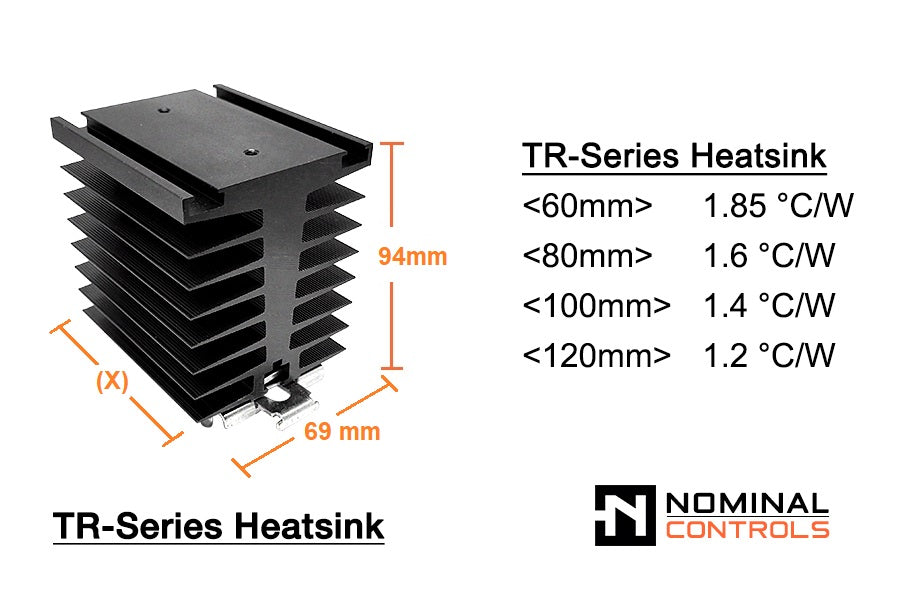

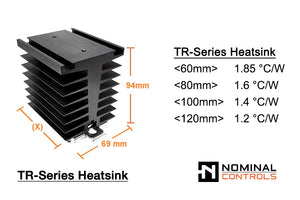

- Available 1.85°C/W, 1.6°C/W, 1.4°C/W, or 1.2°C/W thermal resistance
- Pre-installed DIN Rail Mount
- Accessories Kit Included (thermal interface pad, screws)
Specifications
|
|
TR-60 |
TR-60 |
TR-100 |
TR-120 |
|
Thermal Resistance (natural convection) |
1.85°C/W |
1.6°C/W |
1.4°C/W |
1.2°C/W |
|
Weight (typical) |
pending |
pending |
pending |
pending |
|
Material |
Extruded Aluminum |
|||
|
SSR Mounting Hole & Thread Size |
M4 x 12 |
|||
|
Recommended Mounting Torque |
15-20 in-lb/1.7-2.2 nM |
|||
